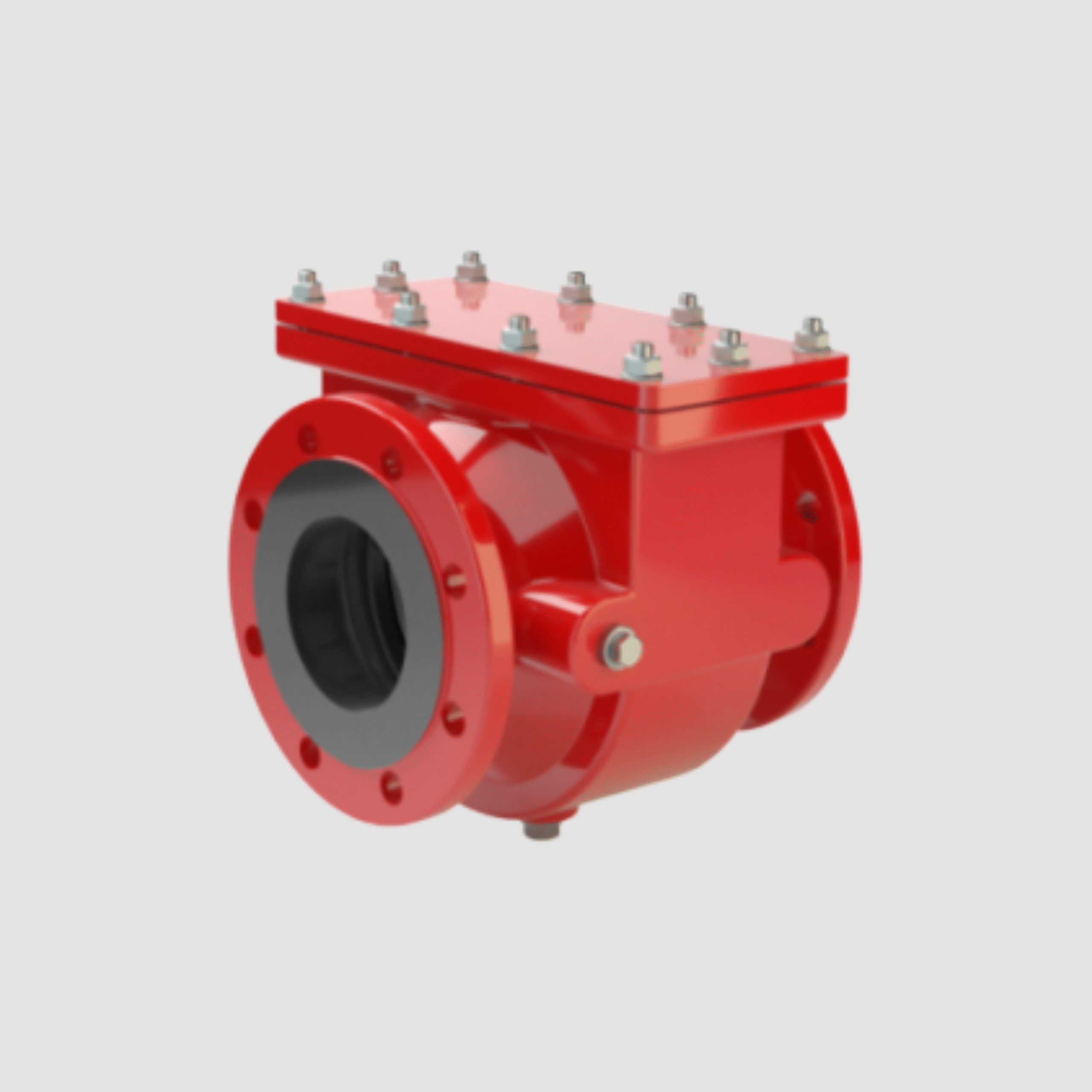

The Protego FA-CN-IIC is a compact, concentric-design flame arrester engineered specifically for hydrogen/air mixture applications (Explosion Group IIC). It provides bi-directional protection against deflagration and allows safe process flow, even with small liquid droplets or particle loads. Its easy-access cover enables fast cleaning and filter maintenance without removing the pipeline. Designed with a larger-than-usual gap width, it ensures low pressure dropand optimal performance in hydrogen systems.
Hydrogen/air deflagration protection
Tool-free maintenance access cover
Modular, service-friendly filter unit
IIC (MESG < 0.50 mm)
Up to 1.1 bar / 15.9 psi
Varies by size: from 30 (DN 40–50) down to 5 (DN 300)
Horizontal or vertical
EN 1092-1 Form B1 ASME B16.5 CL 150 RF (others on request)
DN 40 (1½″) to DN 300 (12″)
Up to +60 °C / 140 °F
ATEX, EN ISO 16852 compliant
Bi-directional
The FA-CN-IIC is ideal for hydrogen storage, pipelines, electrolyzers, fuel cells, and any system handling Group IIC gases. It suits both process and safety-critical operations where reliable flame transmission protection and cleanability are essential.
Optimized for hydrogen and hydrogen/air mixtures, the unit is effective across all Group IIC gases. Its concentric design allows passage of fine liquid droplets or particles without compromising flame-arresting performance.
Protects against low-pressure hydrogen deflagration
Bi-directional flame stopping under dynamic conditions
Minimal pressure drop for energy-efficient systems
Modular FLAMEFILTER® unit for easy cleaning
ATEX & ISO certified for hazardous environments
Design Variants:
FA-CN-IIC – Basic inline model
FA-CN-IIC-T – With one integrated temperature sensor
FA-CN-IIC-TB – With two integrated temperature sensors
Customizable Options:
Special housing materials (on request)
Flame filter materials: Stainless Steel (standard), others available
Alternative pressure/temperature designs
Custom L/D ratios or sensor orientations
