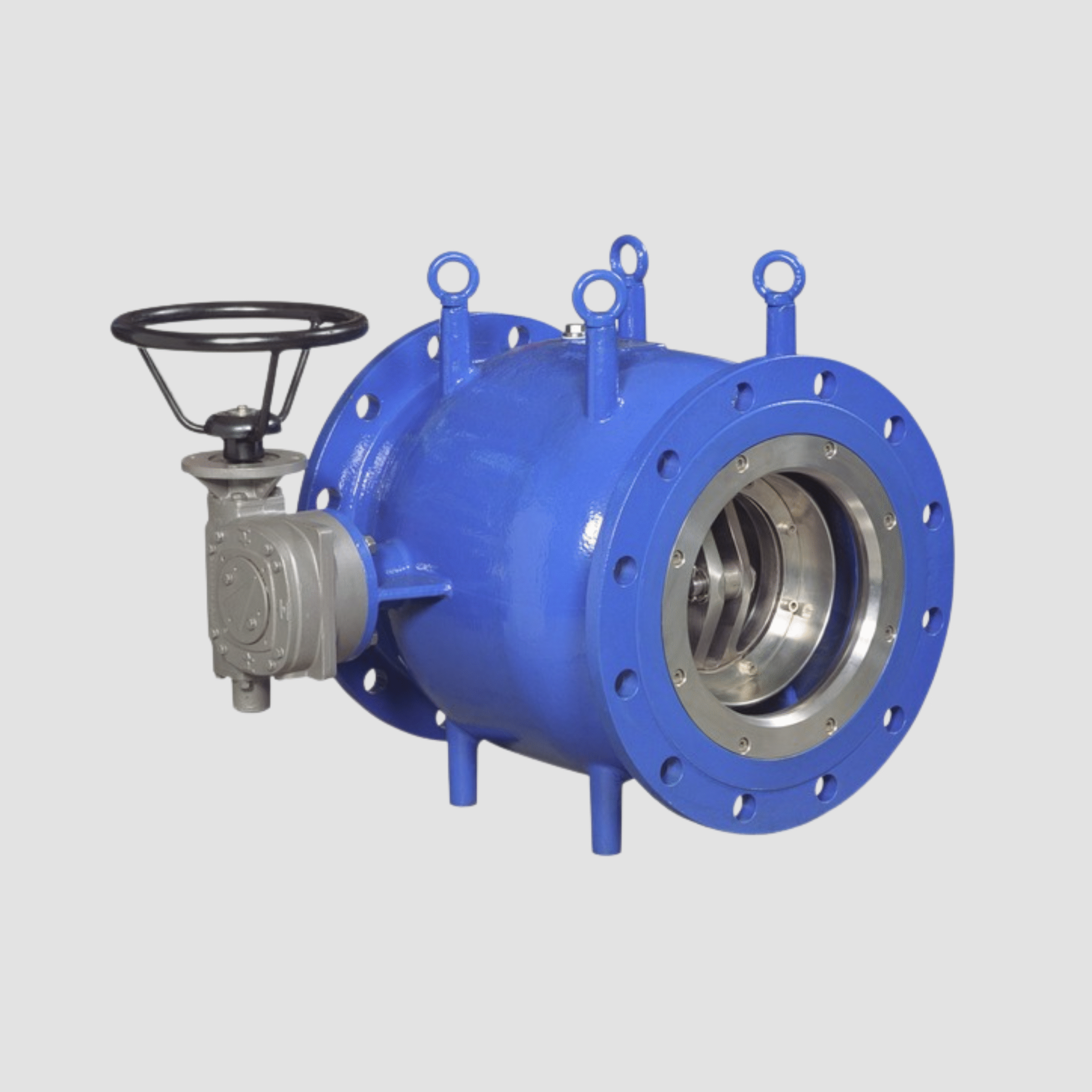

The VAG RIKO® Plunger Valve is a one-piece body, axial control valve engineered for precision regulation of flow and pressure in large-scale water pipelines. With a self-locking worm gear and cavitation-resistant design, the RIKO® ensures linear control with minimum vibration, even under high differential pressure. Its annular flow pattern and no-contact guides enhance performance and longevity.
DN 150–2200
PN 10 / 16 / 25 / 40 / 63 / 100
Cavitation-free annular flow
One-piece body construction
Quad-ring, axial sealing
Self-locking, with integrated position indicator
Per project or VAG technical standards
Manual handwheel or electric actuator
Non-contact guide system (no metal-to-metal friction)
Internal and external epoxy coating
Slotted piston option available
The RIKO® valve is widely used in:
Water treatment plants
Pumping stations
Dams and reservoirs
Penstock control in hydroelectric systems
Pressure management systems in long-distance transmission pipelines
Standard RIKO® – One-piece body with manual or electric actuation
High-Pressure RIKO® – Optimized for PN 63–100 or ANSI Class 300 service
Anti-Cavitation RIKO® – With slotted piston and special cylinder for cavitation-prone applications
Body: Ductile Iron EN-GJS-400-15 (GGG-40)
Piston: Stainless Steel 1.4301
Guides: Hard-faced bronze
Seals: EPDM or custom sealing material
Fasteners: Stainless Steel A2 or A4 depending on size
High-quality epoxy powder coating ensures long-term resistance to corrosion, making the valve suitable for potable and industrial water networks.
Suitable for clean water, raw water, and cooling water. Optional modifications available for bi-directional media and mildly aggressive flow.
Smooth linear regulation across full stroke
Vibration-free operation even under high-pressure gradients
Customizable flow control with slotted orifice cylinders
Isolation-friendly with actuator-driven precision
Long lifecycle with low maintenance requirements
Electric actuator for remote control
Slotted cylinder for anti-cavitation operation
Double piston design for ultra-fine control
Position indicators (mechanical or electrical)
Customized flange connections
From forging and casting to machining, assembly, and testing — every step is managed under one roof to ensure consistent quality, faster lead times, and zero compromise.
